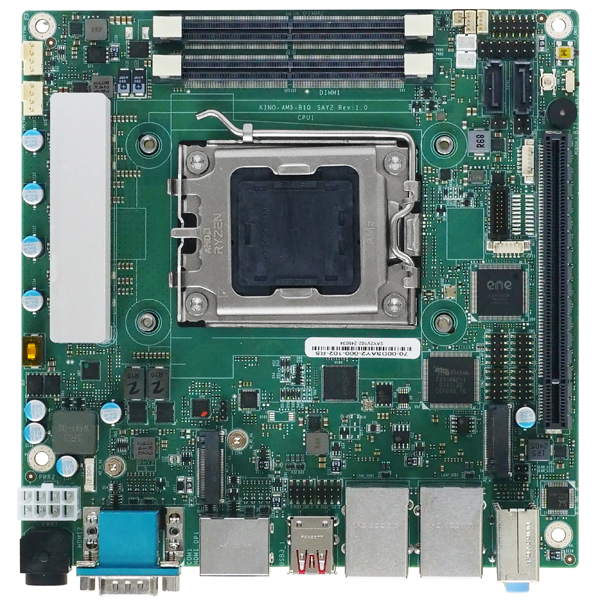

» Mini-ITX SBC supports AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G & 9000 Series Desktop Processors
» Two 262-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 64GB
» Triple independent display via HDMI,DP
» Support Dual Intel® I226V 2.5GbE controller
» Support PCIe Gen4 x16, M.2 M key and M.2 A key expansion
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Mini-ITX |
| System | |
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G & 9000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | Two 262-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 64GB |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| 外觀 | |
| 外觀尺寸（mm） | 170mm x 170mm |
| Net Weight | GW: 1200g / NW: 700g |
| Storage | |
| Storage | 2 x SATA : 6Gb/s |
| I/O Interface | |
| Display Output | 2 x HDMI™ : up to 4096 x 2304@30Hz |
| 1 x Display Port : up to 4096 x 2304 @60Hz | |
| Ethernet |
2 x LAN - LAN1: Intel® I226V 2.5GbE controller LAN2: Intel® I226V 2.5GbE controller |
| Audio |
1 x HD Audio : Realtek ALC888S HD Audio codec 3 x Audio jacks (line-out, line-in, mic-in) on rear IO 1 x Front audio |
| I/O Interface | 1 x External RS-232/422/485 |
| 4 x Internal RS-232 : 2x5 pin, P=2.0 | |
| 1 x Internal RS-232/422/485 : 2x5 pin, P=2.0 | |
| 4 x Internal USB 2.0 : 2x5 pin, P=2.0 | |
| 1 x DIO : 12-bit digital I/O (2x7 pin) | |
| 2 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 4 x External USB 3.2 Gen1x2 : Type-A, 5Gb/s | |
| Expansion | 1 x PCIe x16 : PCIe x16 (Slot1) with Gen4 x16 Signal (Ryzen8000G PHX1 only x8 Signal, PHX2 only x4 Signal) |
|
1 x M.2(NGFF) - 1 x 2280 M.2 M key (PCIe Gen4 X 4) 1 x 2230 M.2 A key( PCIe Gen3 x1 &USB 2.0) (A key will disable with Ryzen8000G PHX2) |
|
| 電源 | |
| 電源功耗 |
12V@13.60A (AMD Ryzen™9 7900 @3.7GHz CPU with Apacer D22.35305H.001 DDR5 5600 32G memory, EuP mode enabled) |
| Power Supply | Support AT/ATX mode |
| 環境 | |
| 操作溫度 | -10°C ~ 60°C |
| 存儲溫度 | -30°C ~ 70°C |
| 濕度 | 5% ~95%, non-condensing |
Ordering Information
| KINO-AM5-R10 | Mini-ITX SBC with AMD Ryzen™ 7000 Series Desktop Processors,DDR5 SO-DIMM, Triple Display,Dual Intel 2.5GbE,USB3.2,M.2,RoHS |
|---|
Package Contents
| Package Content |
|
|---|
