GPU Computing Medical AI Computer
Unleashing Imaging Processing Power

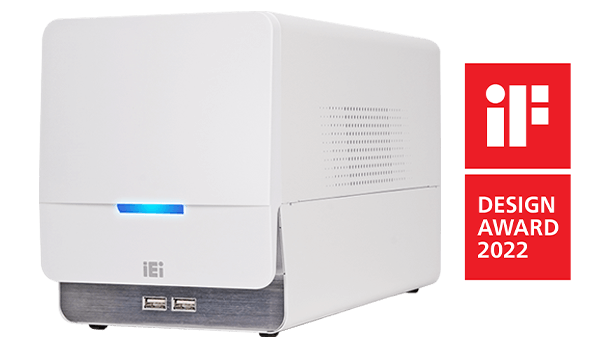

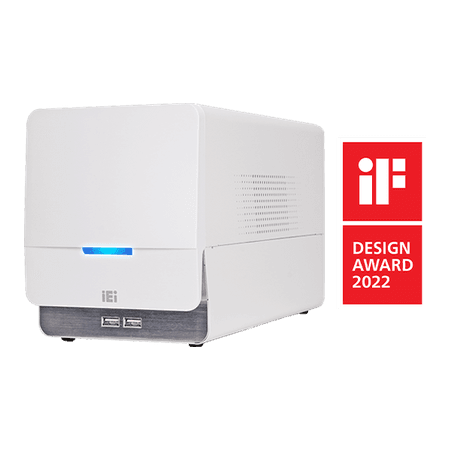

The HTB-230D-R680E is a powerful medical GPU computer designed for the medical imaging market, featuring an Intel 13th Gen Core i9 processor, support for up to 300W NVIDIA Quadro RTX GPUs, and expansion slots for capture cards. With a 700W total power budget and advanced thermal management, it excels in high-performance applications, making it the ideal AI computing platform for tasks like medical image analysis and diagnostics, capable of handling large datasets and complex AI models with precision and reliability.
Note: The graphics card is for illustration purposes only and is not included in the package.
13th Gen Intel® Core i9/i7/i5
Support NVIDIA Quadro RTX GPUs
10.1” Front Screen
1920 x 1200 Resolution
700W Power Budget
2 X 2.5 GbE LAN Ports
M.2 2280 NVMe Gen4 x4
6 x USB 3.2 GEN2
4K HDMI 2nd Display
Unleash Unprecedented Power with 13th Gen Intel® Core™ i9 / i7 / i5
Step into the future with the 13th Gen Intel® Core™ i9, i7, and i5 processors, with the i9 processor offering up to 24 cores and a 38% performance boost, perfect for faster, more precise medical image analysis and seamless AI-driven diagnostics.
DDR5 Improves Performance for Medical AI
Improvements in DDR5 speed, capacity, and power efficiency directly translate to better performance in data-intensive medical AI tasks, potentially leading to more accurate diagnoses, faster treatment decisions, and improved patient care.
Higher bandwidth and speed
Speed at 4400 MT/s, a 50% increase over DDR4's 3200 MT/s.
Support for Complex AI Models
Enhanced DDR5 memory enables deployment of complex AI models directly on devices.
Improved error correction
DDR5 has built-in Error Correction Code (ECC), enhancing data integrity.
10.1" 1920 x 1200

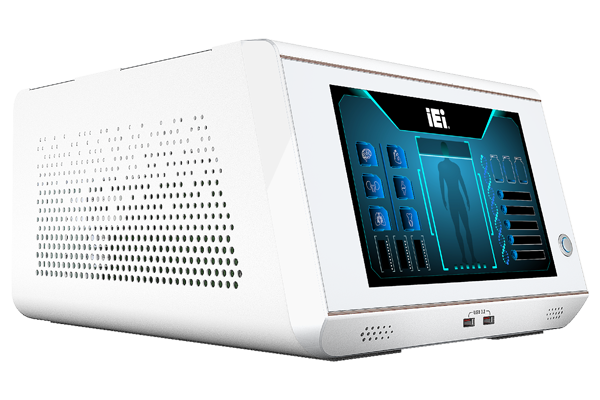

Full Flat Screen Visualizes Diagnostics with Multitouch Operation
The HTB-230D-R680E features an integrated 10.1" front full-flat touchscreen, enabling real-time image processing and analysis with immediate results displayed directly on the screen. By leveraging AI-assisted diagnostics, it empowers healthcare professionals to make rapid, informed decisions, significantly enhancing diagnostic efficiency.
Medically Gloved Touch
10-Point Multitouch
Easy Clean with Anti-False Touch
High End PCIe Gen4 x16 Graphic Card Support
Our medical edge AI system offers exceptional flexibility, supporting full-length, full-height GPU cards with up to three-slot widths, supporting the high-end NVIDIA RTX series.
With a maximum TDP of 300 watts for the GPU power budget, it meets the demands of high-performance computing. The advanced thermal design ensures rapid heat dissipation, maintaining peak performance across diverse applications.
- GPU card expansion up to 111.15 mm (H) x 312 mm (L) and widths up to triple-slot.
- PCIe Gen4 x16 support.
- Supports high-end GPU cards with up to 300W TDP.
Unlock Enhanced Expansion Capabilities with Dual PCIe Gen4 x4 Slots
With two PCI Express Gen4 x4 slots, you can extend the system's peripheral capabilities by adding a 4K resolution video capture card, a 10Gb fiber-optic LAN card, or an isolated RS-232/ USB card.
Note: The interface card is for illustration purposes only and is not included in the package.
AI-Integrated Medical Imaging Solution
The AI-Integrated Medical Imaging Solution offers significant advantages by enhancing diagnostic accuracy and efficiency. With AI-driven analysis, medical professionals can quickly process and interpret large volumes of imaging data, identifying subtle abnormalities that might be missed by the human eye. This leads to earlier and more accurate diagnoses, improved patient outcomes, and streamlined workflows.
700W ATX 3.0 Medical Power Supply For High-End CPU and GPU Computing
Equipped with a 700W ATX 3.0-compliant, 80 PLUS Gold-certified power supply, this solution is optimized for NVIDIA RTX GPUs, ensuring superior AI computing efficiency and minimizing electromagnetic interference with medical-grade certification.
Superior Thermal Performance
The HTB-230D-R680E series is equipped with a specialized thermal management design that features independent airflow channels for the CPU, PSU, and GPU.
This configuration, combined with a strategically positioned system fan, ensures efficient heat dissipation and maintains optimal airflow throughout the unit, preventing thermal bottlenecks and ensuring reliable performance under demanding conditions.
Built-In Front 3W Speakers
Provides real-time audio notifications, enabling caregivers and emergency responders to quickly receive and assess critical sound-based information during urgent medical situations.
High-Speed Six USB 3.2 Gen2 Ports for Enhanced Data Transfer Efficiency
Offers a maximum data transfer rate of 10 Gbps, allowing for the quick transmission of large files, such as high-resolution medical images (e.g., MRI or CT scans).
The front-access USB 3.2 Gen2 interface allows medical personnel to quickly store and carry files via USB, enhancing flexibility in data management and workflow.
HDMI Second Display Real-Time Data Visualization
The medical AI computer, equipped with an HDMI 1.4b port, allows seamless dual-display setups. This lets medical professionals monitor and compare real-time data with historical records, leading to more accurate diagnoses and improved workflow efficiency.
i.I.D.A
(intelligent Imaging Diagnostic Advisor)
i.I.D.A is an advanced medical image aided diagnosis and AI application management platform that provides a one-step, comprehensive solution to help manage hospitals’ medical AI application needs. The platform can be installed with a variety of medical AI applications to support the clinical diagnosis of different cases and provide recommendations for doctor reference. The platform is highly integrated with the medical image transmission process, can automatically identify image attributes and guide them to the corresponding AI application for inference, and can be easily expanded to meet your growing IT needs.
Applications
Surgical Room Recording system
Medical Diagnostic Assistance
AI Inference in Medical Imaging
I/O Interface
- 1AC IN
- 2Power Supply Swich
- 3HDMI Output
- 4USB 3.2 Gen2
- 52.5 GbE LAN
- 6Speaker
- 7Microphone
- 8USB 3.2 Gen2
- 9Power Button
Dimensions
Hardware Spec.
| 顯示 | |
|---|---|
| 螢幕尺寸 | 10.1” |
| 解析度 | 1920 x 1200 |
| 亮度 | 400 |
| 對比度 | 900:1 |
| 顯示色彩 | 16.7M (8-bit) |
| 像素大小 | 0.03764 x 0.11292 |
| 視角 | 160°/160° |
| 觸控螢幕 | Projected capacitive type with 10-point multi-touch |
| 觸控螢幕控制器 | ILI |
| 觸控屏表面硬度 | 6H |
| 系統 | |
| 處理器 |
13th Gen Intel® Core™ i9-13900/ 13th Gen Intel® Core™ i7-13700/ 13th Gen Intel® Core™ i5-13500 |
| 晶片組 | Intel® R680E |
| GPU | Compatible with NVIDIA Quadro RTX Ampere series GPUs |
| 網路 | |
| 乙太網路控制器 | Intel® I226-V |
| 存儲 | |
| 存儲 | M.2 2280 PCIe Gen4 x4 NVMe SSD |
| RAM | 4 x 288-pin dual-channel DDR5 U-DIMM (up to 4400MHz), ECC and non-ECC unbuffered memory (up to 128GB total) |
| 擴充槽 | |
| 擴充槽 |
1 x PCIe Gen4 x16 slot for GPU (supports full-height cards up to 111.15 mm (4.4 inches), full-length cards up to 312 mm (12.28 inches), and up to triple-slot widths, with a maximum TDP of 300W) 2 x PCIe Gen4 x4 slots for add-on cards 1 x M.2 2280 PCIe Gen4 x4 M-key slot for SSD |
| 音效 | |
| 揚聲器 | 2 x 3W speaker |
| 輸出/入介面 | |
| 前 I/O | 2 x USB 3.2 Gen 2 |
| 後 I/O |
1 x HDMI output 1 x AC IN 1 x Speaker 1 x Microphone 2 x 2.5 GbE LAN 4 x USB 3.2 Gen 2 |
| 指示燈與按鈕 | |
| 按鈕 |
1 x System power button (with power LED) 1 x Power supply swich |
| 指示燈 | Power LED |
| 外觀 | |
| 顏色 | White |
| 散熱 | Smart fan |
| 機構材質 | NCT(N); SECC |
| 重量（淨重, kg） | 7.68 |
| 重量（總重, kg） | 10.69 |
| 外觀尺寸（mm） | 310 x 206 x 390 |
| 電源 | |
| 輸入 | 115V AC – 264V AC medical grade ATX power |
| 輸出 | 700W medical build in power supply |
| 環境 | |
| 操作溫度 | 0°C ~ 40°C |
| 存儲溫度 | -20°C ~ 65°C |
| 濕度 | 10% – 95% (non-condensing) |
| 振動 | 1G |
| 操作衝擊 | 5G peak acceleration (11ms duration) |
| 非操作衝擊 | 15G peak acceleration (11ms duration) |
| 認證 | |
| 電磁兼容與安規 |
CE, FCC Class B Part18, UL 60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2 |
Ordering Information
| HTB-230D-R680E-i9/16G-R10 | Medical AI Box PC, 10.1" panel, PCAP touchscreen, Intel® Core™ i9-13900, w/o GPU card, w/o M.2 SSD, DDR5 U-DIMM 16GB, one PCIe Gen 4 x16 slot, two PCIe Gen 4 x4 slots, 700W medical power supply, R10, RoHS |
|---|---|
| HTB-230D-R680E-i7/16G-R10 | Medical AI Box PC, 10.1" panel, PCAP touchscreen, Intel® Core™ i7-13700, w/o GPU card, w/o M.2 SSD, DDR5 U-DIMM 16GB, one PCIe Gen 4 x16 slot, two PCIe Gen 4 x4 slots, 700W medical power supply, R10, RoHS |
| HTB-230D-R680E-i5/16G-R10 | Medical AI Box PC, 10.1" panel, PCAP touchscreen, Intel® Core™ i5-13500, w/o GPU card, w/o M.2 SSD, DDR5 U-DIMM 16GB, one PCIe Gen 4 x16 slot, two PCIe Gen 4 x4 slots, 700W medical power supply, R10, RoHS |
| HTB-230-R680E-i9/16G-R10 | Medical AI Box PC, w/o 10.1" panel, w/o PCAP touchscreen, Intel® Core™ i9-13900, w/o GPU card, w/o M.2 SSD, DDR5 U-DIMM 16GB, one PCIe Gen 4 x16 slot, two PCIe Gen 4 x4 slots, 700W medical power supply, R10, RoHS |
| HTB-230-R680E-i7/16G-R10 | Medical AI Box PC, w/o 10.1" panel, w/o PCAP touchscreen, Intel® Core™ i7-13700, w/o GPU card, w/o M.2 SSD, DDR5 U-DIMM 16GB, one PCIe Gen 4 x16 slot, two PCIe Gen 4 x4 slots, 700W medical power supply, R10, RoHS |
| HTB-230-R680E-i5/16G-R10 | Medical AI Box PC, w/o 10.1" panel, w/o PCAP touchscreen, Intel® Core™ i5-13500, w/o GPU card, w/o M.2 SSD, DDR5 U-DIMM 16GB, one PCIe Gen 4 x16 slot, two PCIe Gen 4 x4 slots, 700W medical power supply, R10, RoHS |
Package Contents
| Package Content |
|
|---|
