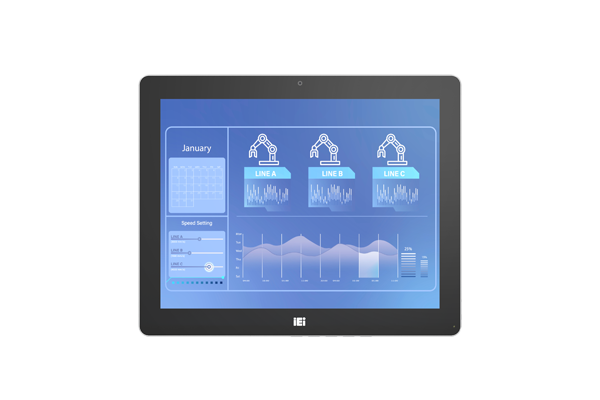

DM2-150

15” Latest Generation Industrial Monitor

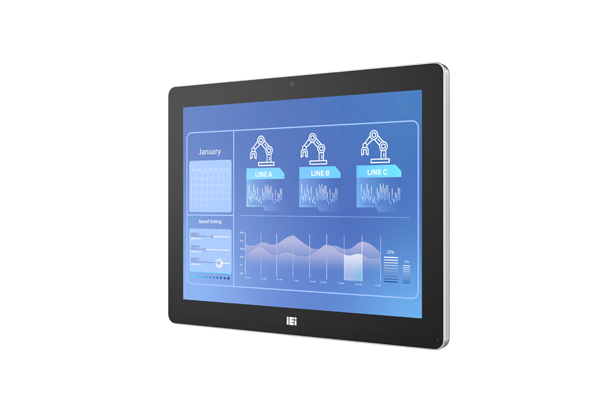

right

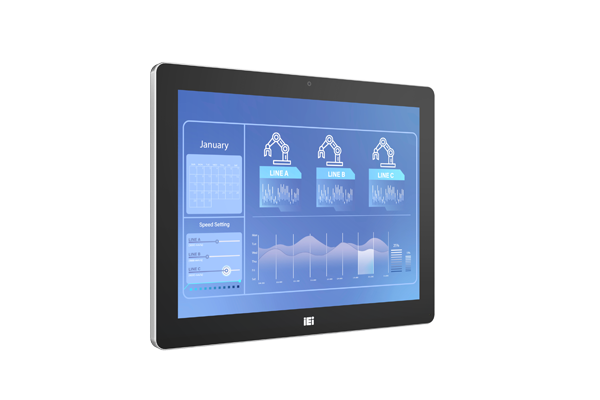

left side

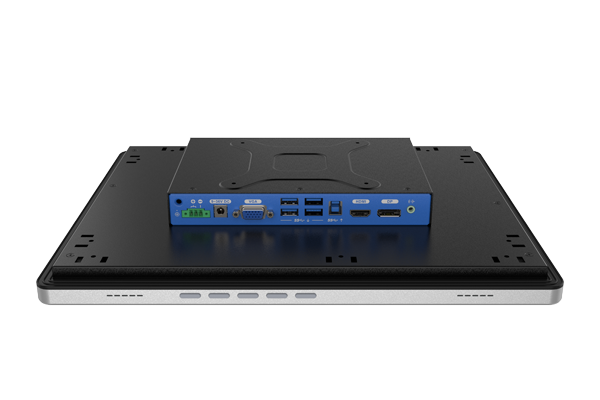

IO
  • right
  • left side
  • IO

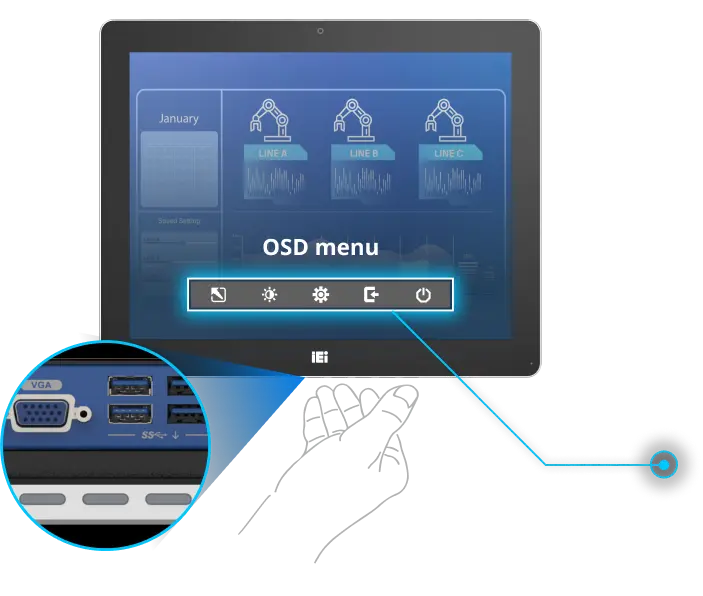

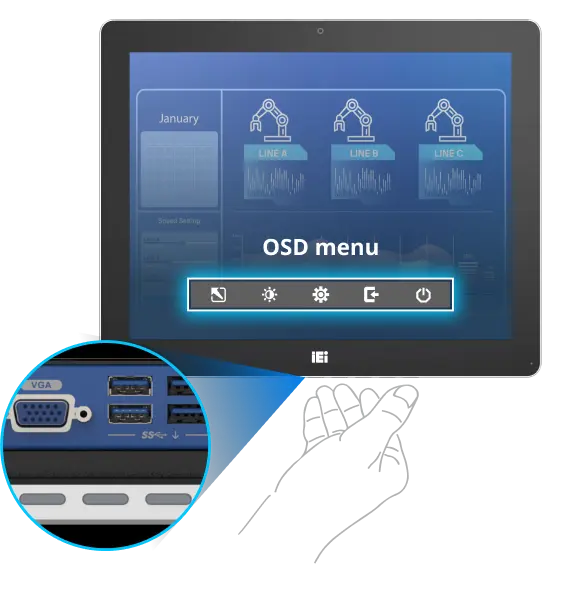

» Front OSD, easy access for setting adjustment

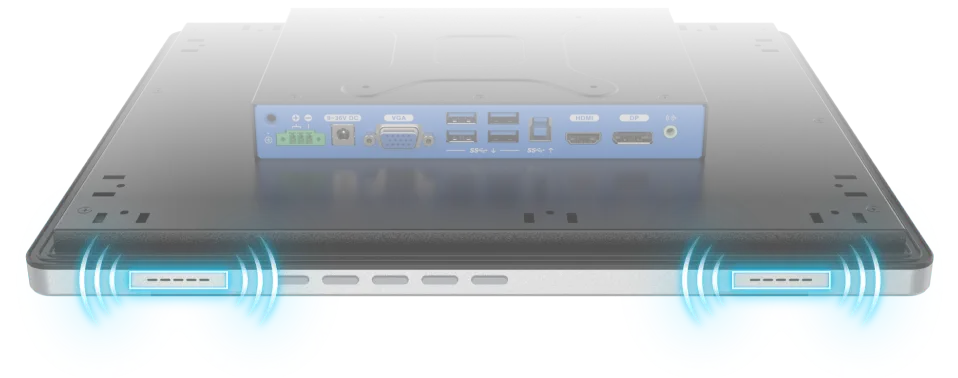

» Speakers positioned at the front, ensuring clear sound delivery even in panel mount

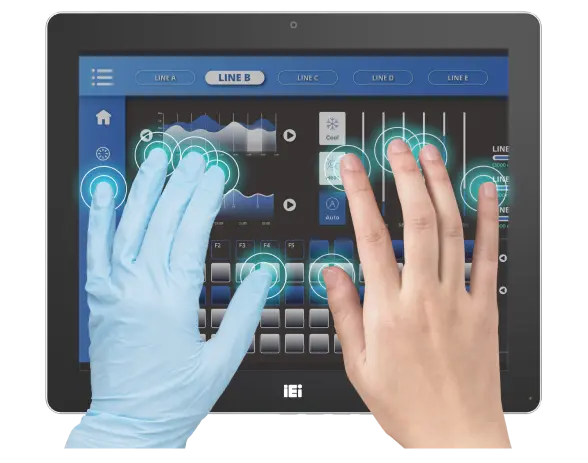

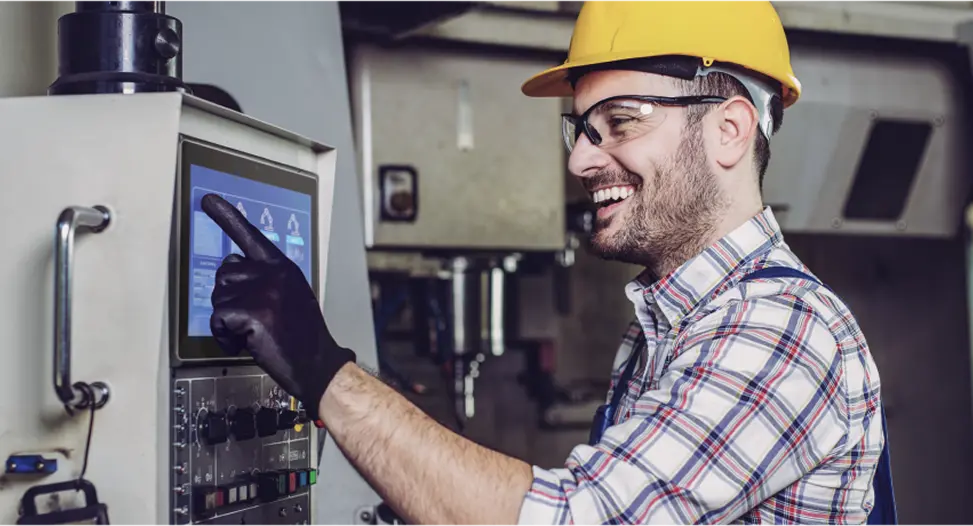

» Supports gloved operation and waterproof protection
» Built-in camera, ideal for AI facial recognition

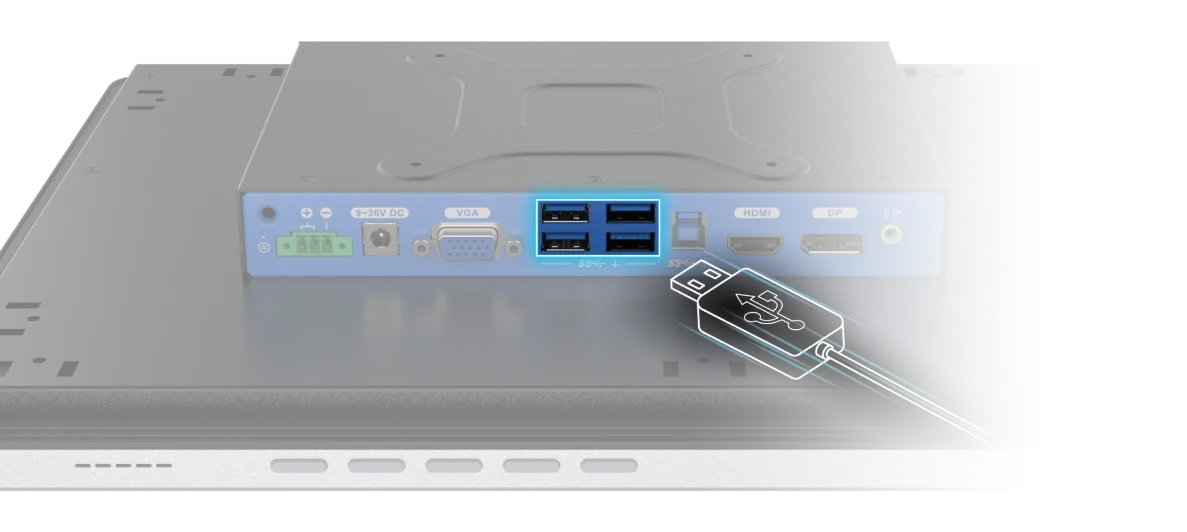

» USB 3.2 Gen1 Type-A supports 10W

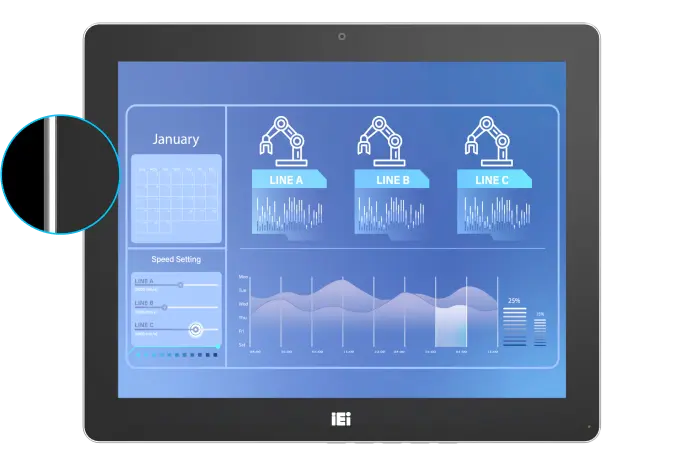

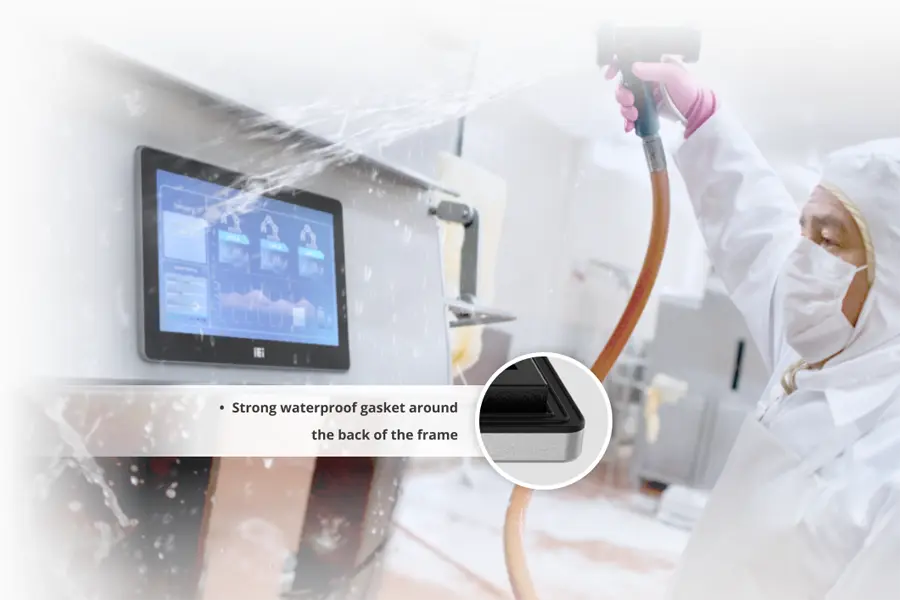

» IP65 compliant front panel with aluminum frame

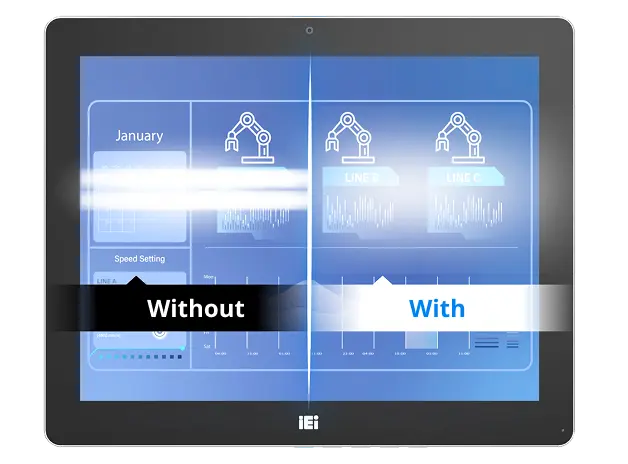

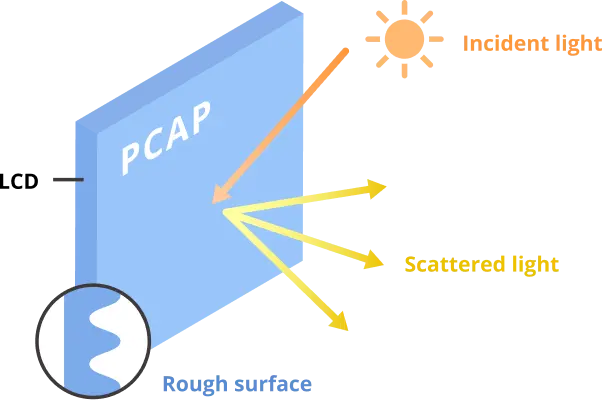

» Anti-glare and anti-UV PCAP

Hardware Spec.

Display
LCD Size 15” (4:3)
Brightness(cd/m2) 350
Max Resolution 1024 x 768
Contrast Ratio 1000:1
Backlight MTBF(hrs) 50000
輸出/入介面
I/O Ports 1 x VGA (DB-15)
1 x HDMI
1 x DisplayPort1.1
1 x USB 3.2 Gen1 Type-B
4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without)
1 x Line out
1 x 9V-36V DC jack
1 x 3-pin terminal block
Power
Power adapter 12V DC
Environment
Operating Temperature -20°C ~ 60°C
Humidity 10% to 95%@40°C (non-condensing)
Storage Temperature -20°C ~ 70°C
IP Level IP 65 compliant front panel
Physical Characteristics
Color Black + Silver
Dimensions (LxWxH) (mm) 353.80 x 287.08 x 50.30
Cutout Dimensions 335.60 x 264.88
LCD
LCD Color 16.2M
Viewing Angle (H-V) 178°/178°
Touch

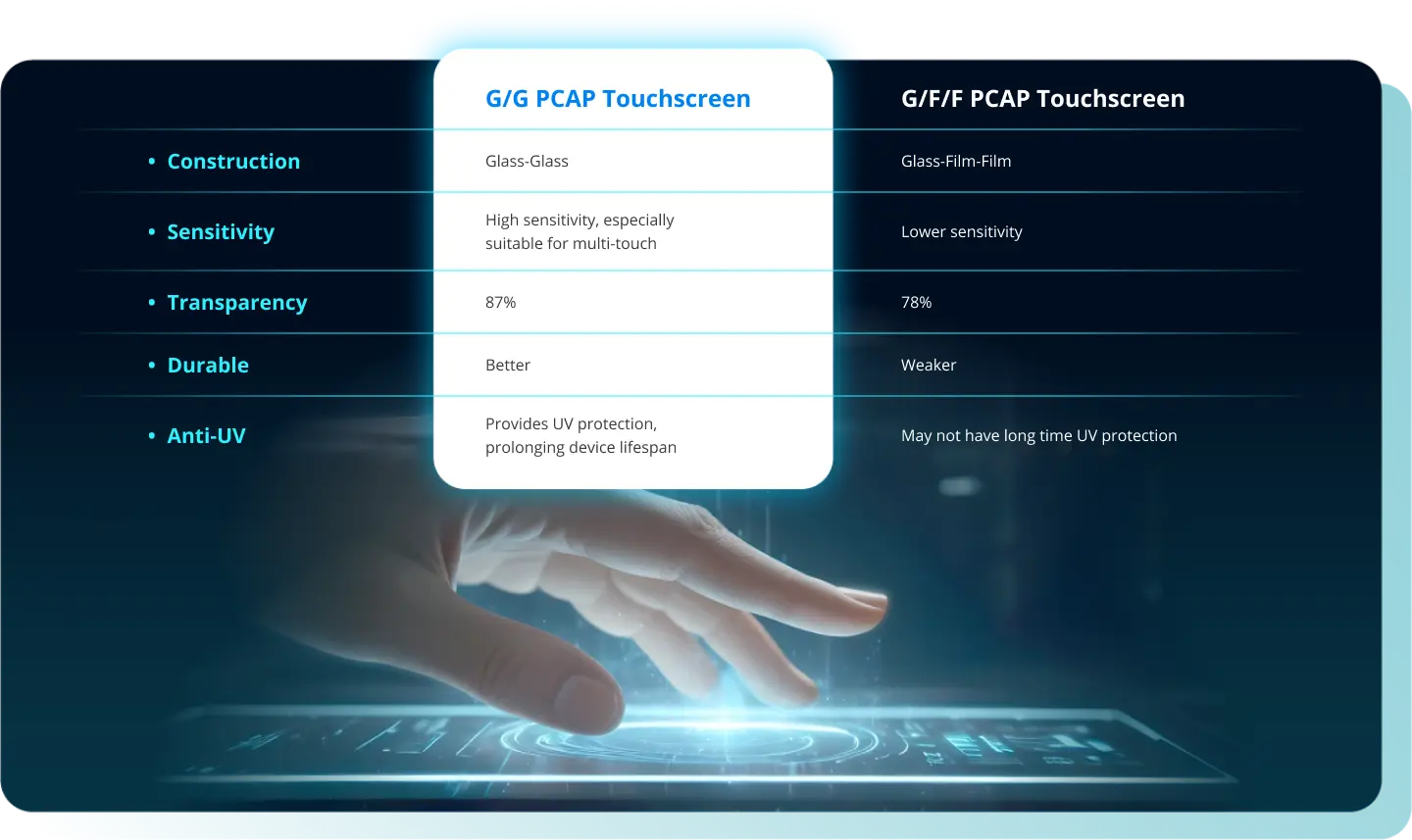

Touch Screen 10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface)
Touch Controller Capacitive:litek

Ordering Information

DM2-150E-R10 15.0" 350 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-150EL-R10 15.0" 350 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10

Package Contents

Package Content
  • 1 x DM2-150

  • 1 x USB-touch Cable

  • 1 x 3-pin Terminal Block

  • 4 x VESA Screws

  • 9 x Panel Mount Kit
