TANK-871-Q170

High-Performance 6th/7th Generation Intel® Core™ Processor

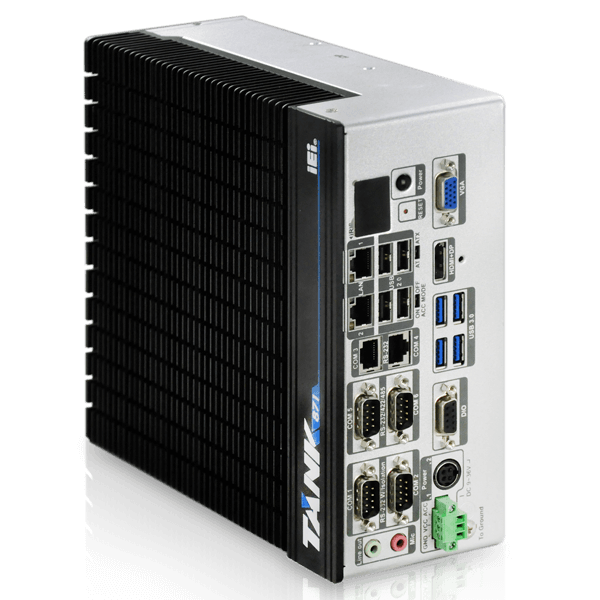

TANK-871-Q170 Fanless Embedded System
TANK-871-Q170 Fanless Embedded System
  • TANK-871-Q170 Fanless Embedded System
  • TANK-871-Q170 Fanless Embedded System
» 6th/7th Gen Intel® Core™ processor platform with Intel® Q170 chipset and DDR4 memory
» Triple independent display with high resolution support
» Rich high-speed I/O interfaces on one side for easy installation

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    Intel 7th Gen Core CPU &
    Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)
    Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
  • Chipset: Intel® Q170
  • System Memory:
    2 x 260-pin DDR4 SO-DIMM, pre-installed one 4GB (system max: 32GB)
  • Power:
    Input - DC Jack: 9 V~36 V DC, Terminal Block: 9 V~36 V DC
    Consumption: 19 V@3.68 A (Intel® Core™ i7-6700TE with 8 GB memory)
  • Reliability:
    Operating Shock - Half-sine wave shock 5G; 11ms; 100 shocks per axis
    Operating Vibration - MIL-STD-810G 514.6 C-1 (with SSD)
    Safety/EMC - CE/FCC
輸出/入介面
I/O Ports
  • USB: 4 x USB 3.0, 4 x USB 2.0
  • Ethernet: 2 x RJ-45
    LAN1: Intel® I210 PCIe controller
    LAN2: Intel® I219LM PCIe controller
  • COM Port:
    4 x RS-232 (2 x RJ-45, 2 x DB-9 w/2.5KV isolation protection)
    2 x RS-232/422/485 (DB-9)
  • Digital I/O: 8 bit Digital I/O, 4 bit input / 4 bit output
  • Display:
    1 x VGA (Up to 1920 x 1200@60Hz)
    1 x HDMI™/DP (Up to 3840x2160@30Hz / 4096×2304@60Hz)
    1 x iDP (optional)
  • Audio: 1 x Line-out, 1 x Mic-in
擴充槽
擴充槽 PCIe Mini:
1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
系統
冷卻方式/系統風扇 Fanless
Drive Bays 2 x 2.5“ SATA 6Gb/s HDD/SSD bay (RAID 0/1 support)
指示燈與按鈕
按鈕 1 x Power Button
1 x Reset Button
1 x AT/ATX Switch
1 x ACC Mode
Physical Characteristics
Construction Extruded aluminum alloys
Color
Color Black C + Silver
Dimensions
Dimensions 82.2 x 255.2 x 204 (WxDxH) (mm)
Weight
Weight 3.5 kg/4.5 kg
Environment
Operating Temperature i7-6700TE -20°C ~ 45°C with air flow (SSD)
i5-6500TE -20°C ~ 60°C with air flow (SSD)
Humidity 10% ~ 95%, non-condensing

Ordering Information

TANK-871-Q170-i7/4G-R11 Ruggedized Fanless embedded system with Intel® Core i7-6700TE 2.4GHz, (up to 3.4 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, VGA/HDMI+DP/iDP, 9~36V DC, Powder paint, RoHS
TANK-871-Q170-i5/4G-R11 Ruggedized Fanless embedded system with Intel® Core i5-6500TE 2.3GHz, (up to 3.3 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, VGA/HDMI+DP/iDP, 9~36V DC, Powder paint, RoHS

Package Contents

Package Content
  • 1 x Chassis Screw

  • 1 x Mounting Bracket
