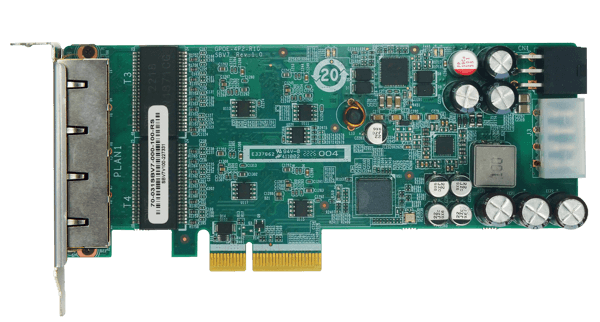

GPOE-4P2

PCI Express Power over Ethernet card, 4-port 2.5GbE, 802.3at/af compliant, low profile, RoHS

» PCI Express® x4 compliant
» Support for total 90 watts under full load
» Support link aggregation/jumbo frames (9 Kbyte)

Hardware Spec.

外觀
外觀尺寸(mm) 158 mm x 69 mm
Net Weight 110g
I/O Interface
Ethernet Description: [PoE Capability]
LAN3/LAN4 support: IEEE 802.3af with 15.4W/52V per port
LAN1/LAN2 support: IEEE 802.3at with 30W/52V per port
(Support for total 90 watts under full load)
4 x LAN Intel® I226V controller
9kB jumbo frame
IEEE 802.3az, IEEE1588
電源
Power Supply 12V~24V DC DC input power -
1 x Internal DC input (1x4 pin)
1 x Internal DC input (2x3 pin)
**Caution! Choose one input only at a time
環境
操作溫度 0°C ~ 60°C (0 ~ 60 watts)
0°C ~ 50°C (60 ~ 90 watts)
存儲溫度 -10°C ~ 70°C
濕度 5% ~ 95%, non-condensing
認證
電磁兼容與安規 CE/FCC compliant

Ordering Information

GPOE-4P2-R10 PCI Express Power over Ethernet card, 4-port 2.5GbE, 802.3at/af compliant, low profile, RoHS

Package Contents

Package Content
  • 1 x GPOE-4P2 Card

  • 1 x Full height bracket
