PUZZLE-IN001

1U Rackmount Network Appliance with Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor, up to 2 NMS and 2 PCIe slots

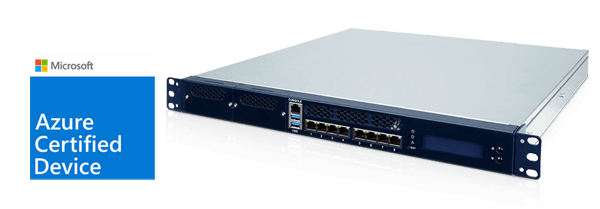

IEI PUZZLE-IN001 x86-based appliance
PUZZLE-IN001 Network Appliance with Intel CPU
PUZZLE-IN001 Network Appliance with Intel CPU
PUZZLE-IN001 Network Appliance with Intel CPU
  • IEI PUZZLE-IN001 x86-based appliance
  • PUZZLE-IN001 Network Appliance with Intel CPU
  • PUZZLE-IN001 Network Appliance with Intel CPU
  • PUZZLE-IN001 Network Appliance with Intel CPU
» Intel® Xeon® E, 8th Generation Intel® Core™/Pentium®/Celeron® Processor
» Support 8 x GbE RJ45 via Intel® I211, and two PulM module slots
» 2 x 288-pin Long DIMM, DDR4 2400MHz ECC & non ECC, up to 32GB
» 1 x RJ45 Console, 2 x USB 3.2 Gen1, LCM
» 2 x 2.5” SATA drive bay, 1 x M.2 B Key, 1 x PCIe mini
» Support open source software, such as pfSense® and OPNsense®.
» Support PCIe x4 and PCIe x8 slot
» Redundant PSUs

Specifications

Hardware Spec.

System
CPU Intel® Gen8 Xeon® E-2136 processor
Intel® Gen8 Core™ i3-8100T processor
Chipset Inte® C246
Memory 2 x DDR4 2400MHz ECC/Non-ECC UDIMM
Memory Max. up to 32 GB
Cooling method / System Fan 4 x Cooling Fans with Smart Fan
Physical Characteristics
Rack Height 1U
Dimensions (LxWxH) (mm) 426x430x44.2
Net Weight 7 kg
Storage
Storage 2 x 2.5” SSD/HDD Bay : support SATA 3.0 (6 Gbps)
1 x M.2(NGFF) B key 2260/2280
I/O Interface
Ethernet 8 x LAN : GbE RJ45 (Inteli211-AT)
I/O Interface 2 x External USB 3.2 Gen1x1
4 x Internal USB 2.0 : Pin header
1 x Console port(s) : RJ45
Expansion 1 x PCIe x8
1 x PCIe x4
1 x PCIe mini Card Slot : PCIe 3.0 & SATA 3.0, USB 2.0
Other Features
TPM 1 x TPM 2.0 Pin header
Power
Power Supply 300W, 100V~240V (Redundant power)
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% non-condensing
Certifications
Safety & EMC CE / FCC / RoHS
OS Support
OS Support Linux Ubuntu 16 & above
CentOS 7/ Red Hat/Fedora EPEL
Microsoft Windows 10

Ordering Information

PUZZLE-IN001-i3T/R-R20 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, two DDR4 slots, and eight 1GbE , two PulM slots , two PCIe expansion, Redundant
PUZZLE-IN001-XE/R-R20 1U Rackmount Network Appliance with Intel® Gen8 Xeon® E-2136 processor, two DDR4 slots, and eight 1GbE , two PulM slots , two PCIe expansion, Redundant Power, RoHS
PUZZLE-IN001-R-R20 1U Rackmount Network Appliance support Intel® Gen8 Xeon®E3, Core™ i3, Pentium® or Celeron® processor, two DDR4 slots, and eight 1GbE , two PulM slots with new screw hole design, two PCIe expansion, Redundant Power, RoHS

Package Contents

Package Content

  • ．2 x Power cord

  • ．2 x Rack mounting ears

  • ．6 x Screws for rack mounting ears

  • ．USB to console cable (Option)

  • ．RS-232 to console cable (Option)

  • ．Slide rail (Option)

  • ．CPU Heatsink (TDP:80W) (Option)

  • ．CPU Heatsink (TDP:35W) (Option)

  • ．HDMI™ cable (Option)
