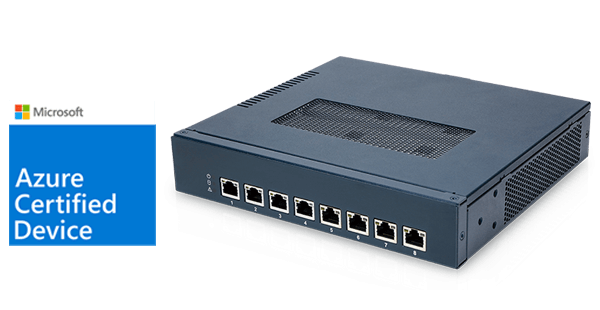

PUZZLE-IN003A
• Intel® Atom® Processor C3000 Processor
• Support 4 x 1 GbE NIC via Intel® I211, 4 x 1 GbE PHY via Marvell 88E1543
• Support bypass function (by sku)
• DDR4 2133MHz ECC (by CPU) or non-ECC UDIMM/R-DIMM Up to 128GB
• 1 x M.2 A key (USB 2.0, PCIe x1), 1 x miniPCIe (USB 2.0, PCIe x1) with SIM card slot, 1 x eMMC 32GB
Hardware Spec.
| System | |
|---|---|
| CPU |
PUZZLE-IN003A-C1 : Intel® Atom® processor C3558 PUZZLE-IN003A-C3 : Intel® Atom® Processor C3336 |
| Chipset | Integrated in CPU |
| Memory |
PUZZLE-IN003A-C1: 2 x 288-pin DIMM PUZZLE-IN003A-C3 : 1 x 288-pin DIMM |
| Memory Max. | DDR4 2133MHz ECC (By CPU) or non-ECC UDIMM up to 64 GB, Support RDIMM up to 128GB |
| Cooling method / System Fan | Fanless |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 206 x 225 x 44.2 |
| Net Weight | 2 KG |
| Storage | |
| Storage | 1 x SATA : SATA 3.0 + 1 x 5V power connector (for SATA DOM) |
| 1 x M.2(NGFF) (M.2 M key 2260/2280 Support PCIe 3.0 x4 nVME) | |
| 1 x eMMC (32 GB) | |
| I/O Interface | |
| Ethernet |
8 x LAN : * PUZZLE-IN003A-C1 : 8 x GbE LAN ports (4 x GbE NIC: Intel® i211-AT , 4 x GbE PHY: Marvell 88E1543) * PUZZLE-IN003A-C3 : 6 x GbE LAN ports (4 x GbE NIC: Intel® i211-AT , 2 x GbE PHY: Marvell 88E1543) |
| I/O Interface | 1 x External USB 2.0 |
| 1 x External USB 3.2 Gen1x2 | |
| Expansion | 1 x PCIe mini Card Slot (PCIe 3.0, USB 2.0) with SIM slot |
| 1 x M.2(NGFF) : A key (PCIe 3.0 & USB 2.0) | |
| Falt-tolerance | |
| LAN Bypass |
PUZZLE-IN003A-C1 : 2 bypass segments PUZZLE-IN003A-C3 : 1 bypass segments |
| Wireless | |
| Others | 2 x Antenna hole |
| Other Features | |
| TPM | 1 x TPM 2.0 pin header |
| Power | |
| Input | 1 x DC jack |
| Power Supply | 12 V DC-in, 60W |
| Environment | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 75°C (-4°F ~ 167°F) |
| Humidity | 5% ~ 90% non-condensing |
| Certifications | |
| Safety & EMC | CE / FCC / RoHS |
| OS Support | |
| OS Support |
Linux Ubuntu 18.04.04 CentOS 7 / Red Hat / Fedora EPEL Microsoft Windows 10 |
Ordering Information
| PUZZLE-IN003A-C3/8G-R10 | Desktop Network Appliance with Intel® ATOM® C3336 Processor , 6 x 1GbE on Board with up to 1 bypass segments, 8GB DDR4, eMMC 32GB & 2x M.2 slot |
|---|---|
| PUZZLE-IN003A-C3-R10 | Desktop Network Appliance with Intel® ATOM® C3336 Processor , 6 x 1GbE on Board with up to 1 bypass segments, eMMC 32GB & 2x M.2 slot |
| PUZZLE-IN003A-C1/8G-R10 | Desktop Network Appliance with Intel® ATOM® C3558 Processor , 8 x 1GbE on Board with up to 2 bypass segments, 8GB DDR4, eMMC 32GB & 2x M.2 slot |
| PUZZLE-IN003A-C1-R10 | Desktop Network Appliance with Intel® ATOM® C3558 Processor , 8 x 1GbE on Board with up to 2 bypass segments, eMMC 32GB & 2x M.2 slot |
Package Contents
| Package Content |
|
|---|
