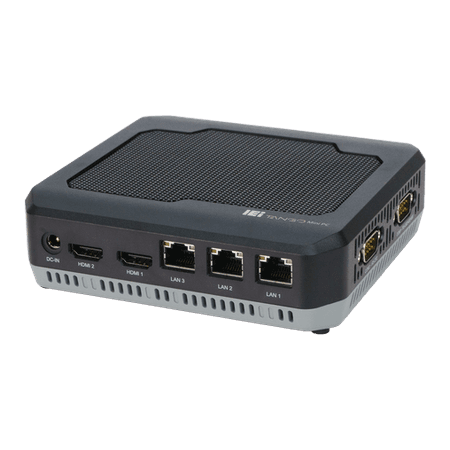

DRPC-242-ADL-P
» Supported CPUs:
Intel® Core™ i7-1370PE (up to 4.8GHz, 14-core, 28W TDP)
Intel® Core™ i7-1260P (up to 4.7GHz, 12-core, 28W TDP)
Intel® Core™ i5-1340PE (up to 4.5GHz, 12-core, 28W TDP)
Intel® Core™ i5-1240P (up to 4.4GHz, 12-core, 28W TDP)
Intel® Core™ i3-1320PE (up to 4.5GHz, 8-core, 28W TDP)
Intel® Core™ i3-1220P (up to 4.4GHz, 10-core, 28W TDP)
Intel® Celeron® 7305 (5-core, 15W TDP)
» 2 x USB 3.2 Gen2 & 4 x USB 2.0
» 2 x RS-232 & 2 x RS-422/485 (with 2.5KV isolation)
» CE/FCC compliant
The DRPC-242-ADL-P is an integrated DIN rail box PC. It boasts a modular design with PCIe expansion, giving users the flexibility to customize the configuration according to their specific needs. With its impressive computing power, powered by the 12th generation Intel® Core™ Processors, and versatile I/O connectivity, the DIN Rail Box PC efficiently handles advanced Industrial Internet of Things (IIoT) applications, including AMR controllers, EV charging station controls, AI inference computing, robotics control, and cabinet control.
Optimizing AI Inference with 12th Gen Intel® Core™ Mobile Processors
IEI DRPC-242-ADL-P is ideal for multitasking industrial workloads,
with its up to 12 cores and 16 threads, as well as up to 96 graphics
execution units in the SoC design. This powerful combination
allows it to handle high-performing AI for inferencing and machine
vision tasks effectively.
Moreover, the DRPC-242-ADL-P supports built-in AI acceleration
from Intel® Deep Learning Boost (Intel® DL Boost) and the Intel ®
Distribution of OpenVINO™ toolkit, further enhancing its
capabilities for AI-related tasks.
Stackable, Modular PCIe x4 Design for Added Functionality
By adding an optional second stack expansion kit, TXC-DRPC-242-1S, the DRPC-242-ADL-P becomes highly flexible, allowing the installation of various PCIe x4 add-on cards. These cards include high-density I/O cards, vision cards, motion cards, and AI accelerators, catering to specific application requirements. The connections are made through simple and reliable board-to-board connections, ensuring ease of use and reliability.
Wireless Connectivity for Edge Telemetry
The DRPC-242-ADL-P enables seamless wireless connectivity and AI accelerating for remote and mobile edge deployments.
» 5G/4G cellular communication by M.2 3042/3052 B key slot with SIM socket on board (PCIe Gen3 x1/UsB 3.2 Gen2/USB 2.0 mode)
» Wi-Fi & Bluetooth by M.2 2230 A key slot (PCIe Gen3 x1/USB 2.0 mode)
Industrial-grade Hardened Hardware Design with 12V~28V DC Wide-range Power Input
Ruggedized hardware architecture safeguards the small factor computer in harsh, remote and dynamic environments.
- » Fanless cooling eliminates failure points
- » -20°C to 60°C wide operating temperature
- » 15G non-operation and 5G operation shock
- » Wide 12V to 28V DC voltage input
- » Intel® Platform Trust Technology (Intel® PTT) to enable password pro-tection, device authentication and future-ready cybersecurity
Fanless System with Reliable Thermal Design
DRPC-242-ADL-P boasts an optimized thermal design featuring a cutting-edge pin-fin heatsink concept. This innovative design significantly improves two-dimensional heat conduction while reducing flow impedance, resulting in superior heat dissipation within this fan-less system.
As a result of this enhanced thermal efficiency, the overall weight of the DRPC-242-ADL-P has been reduced by an impressive 35%. This weight reduction not only makes the system more compact but also enhances its reliability, especially in applications sensitive to vibrations, such as AGV (Automated Guided Vehicle) setups.
The implementation of the pin-fin heatsink concept allows the DRPC-242-ADL-P to outperform systems that use traditional plate heatsinks with parallel fins. This results in maximized performance and superior heat management for the DRPC-242-ADL-P, making it an ideal choice for demanding industrial applications.
Advanced High-efficiency Fan Kit Releases Extreme Computing Power
For computing-intensive applications, users could opt to add an external fan for an active cooling solution maintaining high system performance in high temperature environment. This design also brings high reliability by preventing dust or particles from getting into the hardware, and it is easy to disassemble and clean.
- » TDP 15W -20°C ~ 60°C w/o external fan
- » TDP 28W -20°C ~ 60°C with external fan
Flexible Dual-Storage Design
The DRPC-242-ADL-P offers a dual-storage design, allowing you to customize it with up to a 2.5-inch solid-state drive (SSD), an M.2 (2280) NVMe PCIe SSD, or a combination of both, providing added flexibility to suit your needs. By including an M.2 NVMe drive with PCIe GEN4 x4 performance, the DRPC-242-ADL-P ensures a consistent and high-speed flow of data to the integrated CPU and GPU. This capability is particularly valuable for demanding data cache applications, as it optimizes performance and responsiveness.
Dual 4K Displays with Immersive Graphics and Media Performance
The DRPC-242-ADL-P is equipped with one HDMI 1.4 port and one DP++ port, both support pixel-accurate 4K resolutions and empower manufacturers to access clearer analysis and management via panel displays or interactive displays. The DP++ connector allows the use of a simple, inexpensive passive adapter to convert to HDMI. It is completely plug and play, handles both video and audio, and does not need any driver to work.
2.5kV Isolated COM Ports Ensure Reliable Connectivity
The four serial ports are protected against 2.5kV isolation to prevent accidental high voltage shorts, lightning surges and ground loops, so that the DRPC-242-ADL-P will not be damaged while connected.
Industrial I/O Connectivity
- 112-28V DC Input Remote Power
- 2Remote Power
-
31 x Lockable HDMI 1.4b (up to 4096 x 2160@30Hz)1 x DP 1.4b (up to 4096 x 2160 @60Hz)
- 4Power Button
- 5AT/ATX Mode
- 6Reset
- 73 x 2.5 GbE LAN
- 84 x USB 2.0
2 x USB 3.2 Gen2 - 92 x RS-422/485
(with isolation) - 102 x RS-232
(with isolation) - 11External Fan Connector
Dimensions
System
With Expansion Chassis
Optional Accessories
Modules
Power Adapter & Power Cord
Cables
People Also Viewed
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
|
| I/O Interface | |
| I/O Ports |
|
| Expansion Slots | |
| Expansion Slots |
|
| System | |
| Cooling method / System Fan |
Fanless 4-pin external system fan connector |
| Drive Bays | 1 x 2.5” SATA 6Gb/s SSD bay |
| Indicator&Buttons | |
| Buttons |
1 x Power button 1 x 2-pin terminal block for Remote Power Button, 1 x Reset button 1 x AT/ATX switch, |
| Indicators |
1 x Power LED 1 x HDD LED |
| Physical Characteristics | |
| Construction | Extruded aluminum alloy |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 81 x 150 x190 mm |
| Weight | |
| Weight | 1.88 / 2.66KG |
| Environment | |
| Operating Temperature | -20°C ~ 60°C with 0.7M/S air flow (SSD) |
| Humidity | 10% ~ 95% non-condensing |
| Operating Vibration | 10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD) |
| Operating Shock | Half-sine wave shock 5G, 11ms, 3 shocks per axis (SSD) |
| Safety & EMC | CE, FCC, UKCA |
| OS Support | |
| OS Support | Microsoft® Windows® 10/11, Linux |
Ordering Information
| DRPC-242-ADL-P-i7CS-R11 | Embedded system with 12th Gen Intel® Core™ i7-1260P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS |
|---|---|
| DRPC-242-ADL-P-i5CS-R11 | Embedded system with 12th Gen Intel® Core™ i5-1240P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS |
| DRPC-242-ADL-P-i3CS-R11 | Embedded system with 12th Gen Intel® Core™ i3-1220P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS |
| DRPC-242-ADL-P-Ri7ECS-R11 | Embedded system with 13th Gen Intel® Core™ i7-1370PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS |
| DRPC-242-ADL-P-Ri5ECS-R11 | Embedded system with 13th Gen Intel® Core™ i5-1340PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS |
| DRPC-242-ADL-P-Ri3ECS-R11 | Embedded system with 12th Gen Intel® Core™ i3-1320PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS |
| DRPC-242-ADL-P-CCS-R11 | Embedded system with 12th Gen Intel® Celeron® 7305, TDP 15W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS |
Package Contents
| Package Content |
|
|---|
