KINO-DH420

Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3/ Pentium®/Celeron® processor, DDR4, dual independent displays, triple 2.5 GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

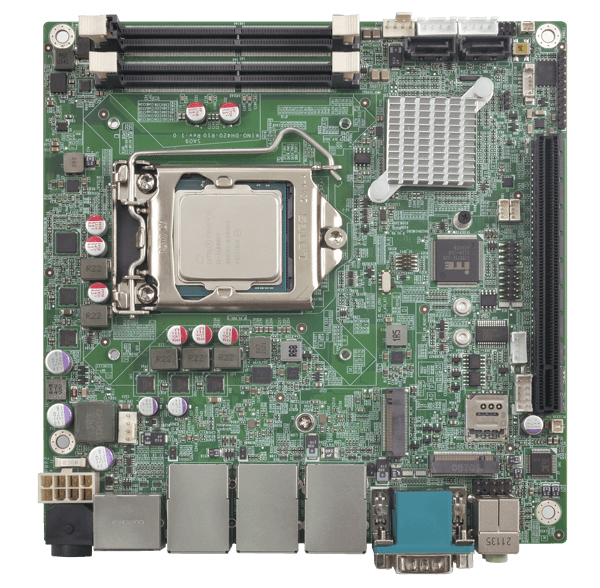

KINO-DH420 Mini-ITX SBC
KINO-DH420 Mini-ITX SBC IO
KINO-DH420 Mini-ITX SBC Side View
  • KINO-DH420 Mini-ITX SBC
  • KINO-DH420 Mini-ITX SBC IO
  • KINO-DH420 Mini-ITX SBC Side View
1. LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
2. Support triple Intel® 2.5Gb Eethernet controller
3. Support HDMI™, DP display output
4. Support 1 x PCIe Gen3 x16, 1 x M.2 A key, 1 x M.2 B key expansion

  • 2 x SATA 6Gb/s & Power

  • Intel® H420E

  • Dual-channel DDR4 Boost

    Two 260-pin 2933 MHz dual-channel DDR4 SO-DIMMs supporting up to 64 GB

  • LGA1200 socket for 10th Gen Intel® Core™, Pentium® and Celeron® processors

  • PCIe Gen3 x16

  • M.2 Expansions

    M.2 B key (3042/3052/2242/2280) (USB 2.0+PCIe Gen3 x2 Mode)

  • M.2 A key (2330)
    (USB 2.0+PCIe Gen3 x1 Mode)

  • 2.5G Network Solution

    Triple 2.5GbE LANs

  • 1
    2 x SATA 6Gb/s & Power
  • 2
    Intel® H420E
  • 3
    Dual-channel DDR4 Boost
    Two 260-pin 2933 MHz dual-channel DDR4 SO-DIMMs supporting up to 64 GB
  • 4
    LGA1200 socket for 10th Gen Intel® Core™, Pentium® and Celeron® processors
  • 5
    PCIe Gen3 x16
  • 6
    M.2 Expansions
    M.2 B key (3042/3052/2242/2280)(USB 2.0+PCIe Gen3 x2 Mode)
  • 7
    M.2 A key (2330)
    (USB 2.0+PCIe Gen3 x1 Mode)
  • 8
    2.5G Network Solution Triple 2.5GbE LANs
  • 8-bit x GPIO
  • RS-422/485
  • Front Panel
  • 2 x USB 2.0
  • 1 x RS-232
  • Audio
  • 2 x RS-232
  • 3 X 2.5GbE
  • 4 x USB 3.2 Gen 1
  • 2 x USB 2.0
  • HDMI™
  • DP
  • 12V DC Input
  • 1
    8-bit x GPIO
  • 2
    2 x USB 2.0
  • 3
    1 x RS-232
  • 4
    RS-422/485
  • 5
    RS-422/485
  • 6
    8-bit x GPIO
  • 7
    Audio
  • 8
    2 x RS-232
  • 9
    4 x USB 3.2 Gen 1
  • 10
    2 x USB 2.0
  • 11
    HDMI™
  • 12
    DP
  • 13
    12V DC Input

Enhanced Performance

The performance boosts up to 80% better than previous generation on i5 processor. The 10th Gen Intel® Core platform supports up to 10 cores and improved performance over Coffee Lake-Refresh. With increased I/O capacity and the latest DDR4-2933 memory support, these processors deliver the performance required to consolidate industrial multiple workloads.

High Speed Transmission

Delivers Triple Low-Latency 2.5G LAN Powered by Intel

The on-board triple 2.5GbE controllers enable the KINO-DH420 to meet the bandwidth-intensive requirements such as large file transfers and high-resolution video streaming.

Multi-tasking

IEI KINO-DH420 features unprecedented network connectivity with three rear 2.5 Gigabit LAN ports, and it is small enough to fit into any space confined situations.

Dual Independent Display

Delivers HDMI™+DP 4K Resolution for Real-time Monitoring

Running with Intel® UHD Graphics of 11th Gen processor at 800 MHz allows the system to display videos and images in stunning 4K resolution via HDMI™ 1.4b and DP 1.4 dual independent display. The enhanced visual quality responses the demand of high precision display.

Touch-enabled BIOS

IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily.

Multiple Expansion Capabilities

M.2 2230 A Key for Wi-Fi / Bluetooth

The M.2 2230 A key slot carrying with PCIe Gen3 x1 and USB 2.0 signals allows it to adopt the latest Wi-Fi 6E technology. Wi-Fi 6E enhances low latency and supports service levels that are equivalent to 5G networks.

Multi-functional M.2 B Key Slot

The KINO-DH420 also offers one M.2 3042/3052/2242/2280 B key socket supporting AI accelerator / NVMe SSD as well as SIM card slot for LTE deployment.

*Among the following three options (A, B & C), only one function can be adopted.

A
M.2 B Key (3042/3052) with SIM Slot for LTE Communications

The M.2 B key (3042/3052) socket supporting PCIe Gen3 x2 and USB 2.0 signals allows you to use a dedicated LTE radio frequency to ensure secure and delay-free data transmission in smart manufacturing.

B
M.2 2242/2280 B Key for NVMe SSD

The M.2 2242/80 B key socket with PCI Gen3 x2 bandwidth supports up to 16Gbps data-transfer speeds. The sequential read/write speed is 2.5 times faster than SATA 6Gb/s. It's the perfect choice for installing an operating system or application drive to provide fast data access.

C
M.2 2280 B Key Accelerates AI Deployment

With the M.2 2280 B-key socket and PCI Express® 3.0 x2 signals, system integrators could choose from IEI's Mustang-M2BM-MX2, AI accelerator card featuring the Intel® Movidius™ Myriad™ X VPU (Vision Processing Unit), and enhance all vision inference applications such as facial recognition, vehicle registration plate recognition, and many other machine vision applications.

AI Accelerator

The Mustang-M2BM-MX2 card equipped with two Intel® Movidius™ Myriad™ X VPU, providing an flexible AI inference computing.

Learn More

One PCIe Gen3 x16 Slot Easily Adds on GPGPU, AI Accelerator, Frame Grabber and More

The KINO-DH420 brings high performance industrial Edge with one PCIe x16 slot. This provides a greater range of support for GPGPU, frame grabber card and AI accelerators. It is designed for the most intensive applications from Edge AI system to automated optical inspection (AOI).

Mustang-V100-MX8

VPU AI Accelerator Card

Mustang-T100-T5

VPU AI Accelerator Card

GPGPU Card

Quality Assurance

With years of experience,
IEI is continuously improving the design and production quality and aiming to achieve customer satisfaction.

  • X-Ray CT Inspection
  • Side Fill Technology
  • -20ºC~60ºC Aging Test
  • CE/FCC Compliance

X-Ray CT Inspection

Side Fill Technology

-20ºC~60ºC Aging Test

CE/FCC Compliance

Specifications

Hardware Spec.

Form Factor
Form Factor Mini-ITX Motherboard
System
CPU LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset Intel® H420E
Memory Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB
Memory Max. up to 64GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 170mm x 170mm
Net Weight 400g
Storage
Storage 2 x SATA : 6Gb/s (no RAID)
1 x M.2(NGFF) : B key (support NVME storage)
I/O Interface
Display Output 1 x HDMI™ up to 4096 x 2160 @30Hz
1 x Display Port up to 4096 x 2304 @60Hz
Ethernet 3 x LAN -
LAN1: Intel® i225LM GbE controller (colay i225v)
LAN2: Intel® i225v GbE controller (colay i225LM)
LAN3: Intel® i225v GbE controller (colay i225LM)
Audio 1 x Line out
1 x Mic
1 x Front Audio : 2x5 pin
1 x HD Audio : Realtek ALC888S HD codec
I/O Interface 2 x External RS-232
1 x Internal RS-232 : 2x5 pin, P=2.00
1 x Internal RS-422/485 : RS-485 support AFC
2 x External USB 2.0 : Type-A
4 x External USB 3.2 Gen1x1 : 5Gb/s(Type-A)
2 x Internal USB 2.0 : 2x4 pin, P=2.00
1 x DIO : 8-bit digital I/O (2x5 pin)
Expansion 1 x PCIe x16
2 x M.2(NGFF) -
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (PCIe Gen 3 x2/USB 2.0)
Other Features
TPM Intel® PTT(TPM 2.0)
Power
Power Consumption 12V@12.408A (Intel® Core™ i9-10900E CPU with two 32 GB 2933 MHz DDR4 memory, EuP/ErP mode disabled)
Power Supply DC 12V input
1 x ATX power connector (2x4 pin)
1 x DIN 4-pin DC Jack
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature 0°C – 60°C
Storage Temperature -30°C – 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

KINO-DH420-R10 Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, triple 2.5GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content

  • 1 x KINO-DH420 single board computer

  • 1 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
