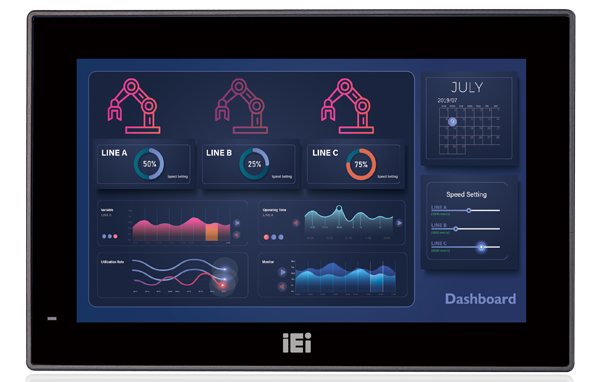

AFL3-W07A-BT
» W7”~8.4” light industrial interactive panel PC
» 9 V ~ 30 V wide range DC input with lockable DC jack
» Selectable AT/ATX power mode
» Built-in speakers
» One mSATA slot
» IP64/IP65 compliant front panel
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
Hardware Spec.
| System | |
|---|---|
| CPU | Intel® Celeron® N2807 (dual core, 1.58 GHz) |
| Communication | |
| Wi-Fi | IEEE 802.11a/b/g/n/ac |
| I/O Interface | |
| RAM | 2GB DDR3L onboard RAM |
| I/O Ports and Switches |
2 x RS-232 COM port (DB-9 connector) 2 x USB 3.2 Gen 1 (5Gb/s) 2 x GbE LAN 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x 9-30V Lockable power jack |
| Power | |
| Power Requirement | 9~30 VDC |
| Environment | |
| Operating Temperature | -20°C~50°C |
| Storage Temperature | -20°C~60°C |
| Storage | |
| Storage | mSATA |
| Dimensions | |
| Dimensions | 191 x 127 x 43 |
| Weight | |
| Weight | 0.73 / 1.81 Kg |
| LCD | |
| Size | 7" |
| Resolution | 1024 x 600 |
| Brightness (cd/m2) | 500 |
| Contrast Ratio | 700:1 |
| LCD Color | 16.2M |
| Pixel Pitch (mm) | 0.0635 (H) x 0.1905 (V) |
| Viewing Angle (H-V) | 150º/145º |
| Backlight MTBF | 20000 hrs |
| Touch | |
| Touch Screen |
Projected capacitive with USB interface (anti-UV / anti-glare coating) |
| Touch Controller | EETI EXC3160 |
| Other Features | |
| Camera | N/A |
| Microphone | N/A |
| I/O Interface | |
| I/O Interface | 2 x RS-232 (COM port: DB-9 connector) |
| 2 x USB 3.2 Gen1x1 (5Gb/s) | |
| 2 x LAN (GbE) | |
| 1 x DC Input Jack (9-30V Lockable power jack) | |
| 1 x Reset Button | |
| 1 x Power Switch | |
| 1 x AT/ATX switch | |
Ordering Information
| AFL3-W07A-BT-N1/PC/2G-R21 | 7" 500cd/m2 1024x600 HD fanless panel PC with Intel Celeron N2807 dual core 1.58 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, on-board 2GB DDR3L RAM , with AG, R21 |
|---|
Package Contents
| Package Content |
|
|---|
