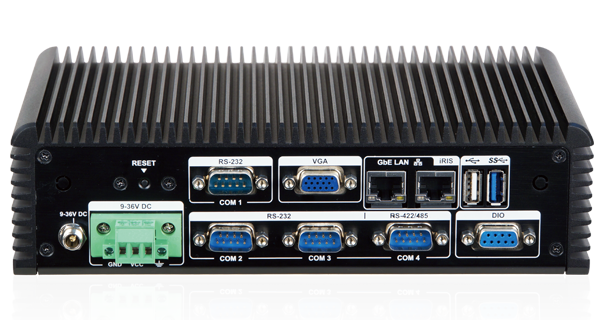

ECW-281B
» Fanless system with Intel® Celeron® J1900 Processor
» Supports four COM ports (three RS-232, one RS-422/485)
» Wide operating temperature: -20°C ~ 60°C with SSD
» 12V DC and 9-36V DC models available
Based on big data analytics, smart agriculture uses a variety of sensors to collect data to meet industry needs. Data-driven decisions and actions are used to reduce the workload of agricultural workers and to increase yields.
Agriculture
Differing from the traditional regular watering manner, we can now utilize technology to monitor soil moisture. When the soil moisture reaches the pre-set value, the watering system will automatically turn on to moisten the soil as needed, saving lots of water and manpower.
Key data
-
Temperature
-
Sunlight
-
Soil composition
-
Soil moisture
-
Soil pH
Animal husbandry
We can monitor the activity content of cows to accurately detect its estrus to have greater milk yield. Monitoring a cow's body temperature can help us estimate the cows' delivery time to reduce staff visits.
Key data
-
Water temperature
-
Dissolved oxygen
-
Water quality (NO2, NO3, H2S, NH4)
-
pH
Fish farming
Monitor the amount of dissolved oxygen in the water to set the aerator start-up time for saving electricity consumption. Monitor the change of water quality to take necessary actions, such as adding medicine or changing water.
Key data
-
Water temperature
-
Dissolved oxygen
-
Water quality (NO2, NO3, H2S, NH4)
-
pH
-
Soil pH
Agriculture Automation System Application
Due to the large amount of data that need to be monitored, a highly integrated computing device is of utmost importance for the convenience of staffs.
-
Irrigation monitor & control
-
Illumination monitor & control
-
Recipe selection & Schedule control
Benefits
-
This system can help farmer to build an irrigation schedule system and to monitor plant growth from remote.
-
Farmers is able to create a watering mode based on data analysis and find out the best watering time by collecting long-term data such as air humidity, soil dampness, light, etc.
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
CPU:Intel® Celeron® J1900 processor (2 GHz, quad-core, 2 MB cache, TDP=10W) Chipset:SoC System Memory: 1 x 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM (system max. 8 GB) |
| I/O Interface | |
| I/O Ports |
1 x USB 3.0 3 x USB 2.0 Ethernet: LAN 1: PCIe GbE by Intel® I210 controller LAN 2: PCIe GbE by Intel® I211 controller COM Port: 3 x RS-232 1 x RS-422/485 Digital I/O:8-bit digital I/O Display:1 x VGA Resolution:VGA: Up to 2560x1600@60Hz Audio:1 x Line out Wireless:1 x 802.11b/g/n (optional) |
| Expansion Slots | |
| Expansion Slots |
1 x Full-size PCIe Mini card slot (supports mSATA) 1 x Half-size PCIe Mini card (only for iRIS) |
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays | 1 x 2.5” SATA 3Gb/s HDD bay |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 229 x 64 x 132 |
| Weight | |
| Weight | 2.1 kg / 3.9 kg |
| Environment | |
| Operating Temperature | -20°C~60°C with air flow (SSD) |
| Humidity | 10% ~ 95%, non-condensing |
Ordering Information
| ECW-281BWD-BTi-J1/2GB-R21 [MOQ] *MOQ/最小起订量: Please contact with sales account manager. 请与销售客户经理联系、谢谢。 |
Fanless embedded system with WAFER-BT-R21,with Intel® Celeron J1900 2GHz, 4 serial ports,with 2GB DDR3L pre-installed SO-DIMM memory, 9~36VDC in, w/o adapter, black, RoHS |
|---|---|
| ECW-281B-BTi-J1/2GB-R21 | Fanless embedded system with WAFER-BT-R21,with Intel® Celeron J1900 2GHz, 4 serial ports,with 2GB DDR3L pre-installed SO-DIMM memory,12VDC in, 60W power adapter, black, RoHS |
Package Contents
| Package Content |
|
|---|
