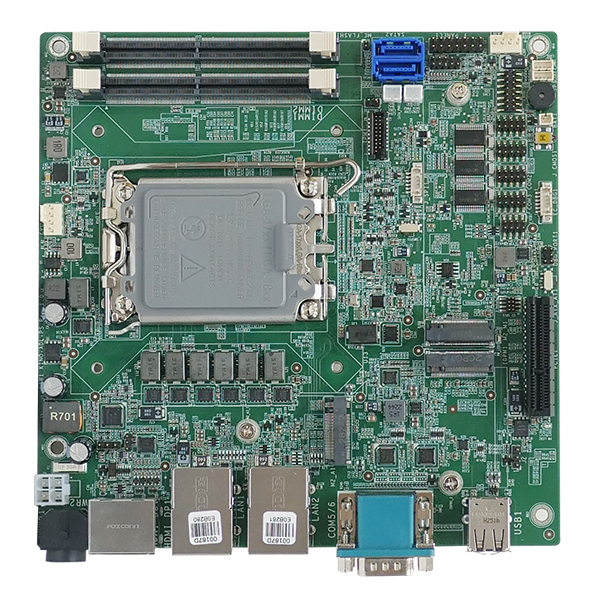

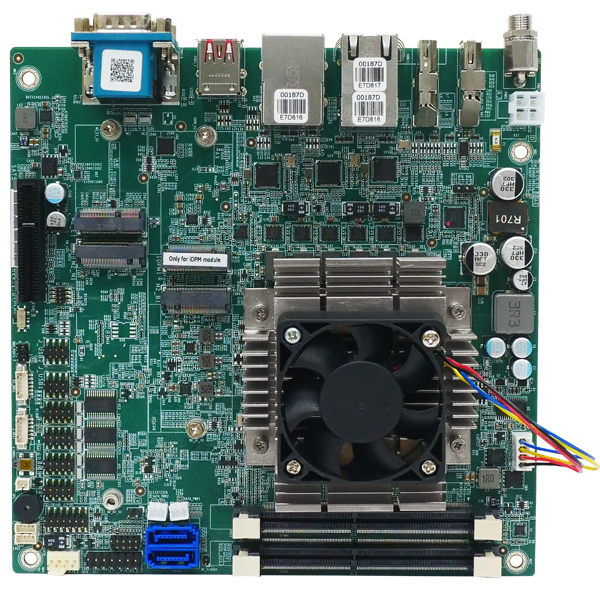

KINO-ADLPS
» Mini-ITX SBC support Intel® Alder Lake-PS Core™ i7/i5/i3 and Celeron® processor (socket)
» Support two 3200MHz DDR4 SO-DIMM
» Triple independent display via HDMI™, DP, iDPM
» Support Dual Intel® I225V/I226V 2.5GbE controller
» Support PCIe Gen3 x4, M.2 M key and M.2 A key expansion
The KINO-ADLPS, a powerful Mini-ITX SBC, is designed for high performance. It supports 12th Gen. Intel® Core™ i7/i5/i3 and Celeron® processors, providing exceptional processing capabilities. With different options, this SBC offers versatility to suit various computing needs.
The KINO-ADLPS supports three independent displays, allowing for immersive multi-screen configurations that boost productivity and visual quality. Whether you are building a compact gaming rig, a media center, KIOSK, or a various workstation, the KINO-ADLPS offers the flexibility and power you need.
Upgrade your computing capabilities with the KINO-ADLPS and experience seamless performance in a compact form factor.
High-Speed 12th Gen Intel® Core™ Mobile Processor
Triple Independent Display
Free-to-Choose Display Interface with IEI iDPM Modules
PCIe Gen4 x16 Expansion
Dual Intel®
2.5G Ethernet
M.2 A Key
M.2 M Key
High-performance 12/13th Gen Intel Core Mobile Processors
The KINO-ADLPS Series uses 12/13th Gen Intel® Core™ Mobile Processors to provide powerful performance with low power consumption. This series utilizes a Performance Hybrid Architecture, combining Performance-cores with Efficient-cores to boost multi-tasking efficiency. The use of sockets in mobile processors is a new approach, allowing for system customization and upgrades. With advanced thermal solutions and intelligent power management, the KINO-ADLPS Series operates efficiently without overheating. It delivers exceptional performance for complex tasks. Experience unmatched performance and reliability with optimized multi-core processing and low power consumption on mobile devices.
Triple Independent Displays with up to 4k Resolution
The KINO-ADLPS integrates Intel® Iris® Xe Graphics, the designated graphics solution for 12th Gen Intel® Core™ processors in the Core i5 and i7 lineup, while Intel® UHD Graphics is utilized by Celeron and Core i3 processors. With its triple independent displays, including DP, HDMI, and iDPM, the KINO-ADLPS becomes versatile for application in diverse IoT scenarios. It can be used in any scenario with multiple displays.
PCIe x4 Slot Allows Extensive I/O and Function Expansion
The PCIe x4 slot offers significant advantages for extensive I/O and function expansion. With its high-speed four-lane interface, it provides a flexible solution for a wide range of peripherals, including sensors, actuators, and data acquisition cards. This enables larger-scale system integration and more complex automation control.
Dual Low-Latency 2.5G LAN Powered by Intel
2.5 GbE allows for different connection speeds ranging from 100 Mbps to 2.5 Gbps on Cat 6 and Cat 5e cables, enabling users to fully utilize high-performance network solutions without costly cable upgrades.
M.2 Expansion for Wi-Fi and NVMe Storage
M.2 2230 A Key for Wi-Fi/Bluetooth
The M.2 2230 A key slot carrying with PCIe Gen3 x1 and USB 2.0 signals allows it to adopt the latest Wi-Fi 6E technology. Wi-Fi 6E enhances low latency and supports service levels that are equivalent to 5G networks
M.2 2280 M Key for PCIe
The M.2 2280 M key slot for PCIe offers advantages including high-speed data transfer, increased storage capacity, compact size, improved system performance, and compatibility with the efficient NVMe protocol.
Optional Accessories
Converter Board
Cable and Connector
32205-002700-200-RS
•RS-232/422/485 cable
•Dimension: (L) 200mm
•P=2.0 (the PIN distance of the PIN Header)
People Also Viewed
Hardware Spec.
| System | |
|---|---|
| CPU | Mini-ITX SBC support Intel® Alder Lake-PS Core™ i7/i5/i3 and Celeron® processor (socket) |
| Memory | Two 3200 MHz DDR4 SO-DIMMs |
| Cooling method / System Fan |
1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 170mm x 170mm |
| Net Weight | GW: 900g / NW: 400g |
| Storage | |
| Storage | 2 x SATA : 6Gb/s |
| 1 x M.2(NGFF) : M Key 2242/3080 (PCIe Gen4 x4) | |
| I/O Interface | |
| Display Output | 1 x HDMI™ : up to 4096 x 2304@60Hz |
| 1 x Display Port : up to 4096 x 2304 @60Hz | |
| 1 x iDPM : 3040 slot (only for iEi eDP/LVDS/VGA module) | |
| Ethernet |
2 x LAN - LAN1: Intel® I225-V/I226-V 2.5GbE controller LAN2: Intel® I225-V/I226-V 2.5GbE controller |
| Audio | 1 x HD Audio : 1 x iAUDIO, support IEI AC-KIT-888S Audio Module (2 x 5 pin) |
| I/O Interface | 2 x External RS-232/422/485 : RS-485 support AFC |
| 4 x Internal RS-232 : 2x5 pin, P=2.0 | |
| 2 x External USB 2.0 : Type A | |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.0 | |
| 1 x DIO : 12-bit digital I/O (2x7 pin) | |
| 4 x External USB 3.2 Gen2x1 : 10Gb/s | |
| Expansion | 1 x PCIe x4 : PCIe Gen3 x4 signal (x4 & x2 + x2 & x2 + x1 + x1) |
| 1 x M.2(NGFF) : A Key for WIFI & BT 2230 (PCIe Gen3 x1 & USB2.0) | |
| Power | |
| Power Consumption |
12V@2.59A (Intel® Core i7-12700HL 2.3GHz 45W CPU with 32GB 3200MHz DDR4 memory, max. loading, EuP mode enabled) |
| Power Supply | +12V DC input power (AT/ATX mode) |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
Ordering Information
| KINO-ADLPS-i7-R10 | Mini-ITX SBC with Intel® Alder Lake-PS Core™ i7-1265UL Processor (socket ), DDR4 SO-DIMM, Triple Display,SATA,Dual Intel 2.5GbE,USB3.2,M.2,RoHS |
|---|---|
| KINO-ADLPS-i5-R10 | Mini-ITX SBC with Intel® Alder Lake-PS Core™ i5-1245UL Processor (socket ), DDR4 SO-DIMM, Triple Display,SATA,Dual Intel 2.5GbE,USB3.2,M.2,RoHS |
| KINO-ADLPS-i3-R10 | Mini-ITX SBC with Intel® Alder Lake-PS Core™ i3-1215UL Processor (socket ), DDR4 SO-DIMM, Triple Display,SATA,Dual Intel 2.5GbE,USB3.2,M.2,RoHS |
| KINO-ADLPS-C-R10 | Mini-ITX SBC with Intel® Alder Lake-PS Celeron® 7305L Processor (socket ), DDR4 SO-DIMM, Triple Display,SATA,Dual Intel 2.5GbE,USB3.2,M.2,RoHS |
Package Contents
| Package Content |
|
|---|
