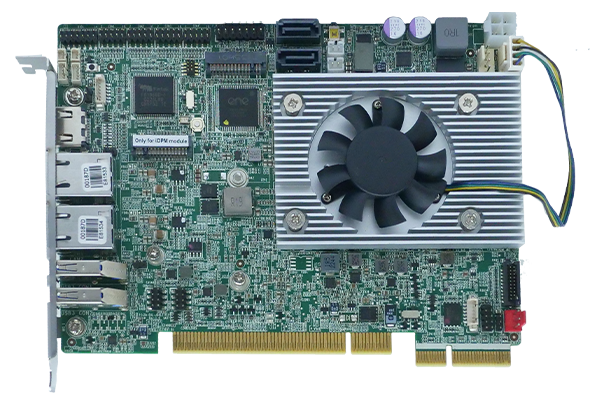

PICOe-EHL
» Intel® Elkhart Lake Celeron® J6412 on-board SoC
» Support dual Intel® I210 GbE Ethernet controller
» Support dual independent displays via HDMI™ and iDPM
» Support one PCIe Gen3 x4, four PCI and one M.2 M Key expansions
» Support two USB 3.2 Gen2, four USB 2.0, two RS-232, two RS-232/422/485
The PICOe-EHL delivers up to 8GB LPDDR4x-3200MHz that provides enough memory bandwidth for smooth multitasking and efficient performance. It supports multiple expansion interfaces, including one PCIe x4, four PCI, two USB 3.2 Gen2 Type-A, and two SATA 6Gb/s, enabling seamless integration with a wide range of peripherals and storage devices. This versatility allows developers to customize and scale their solutions according to specific requirements. It is suitable for embedded systems, IoT devices, and edge computing due to its low power consumption, high data transfer rate, and optimized performance balance. It also offers energy efficiency, and provides computing power and accelerated graphic processing.
Intel® Celeron®
J6412 on-board SoC
8GB LPDDR4x
Memory on-board
Dual Independent
Displays
M.2 PCIe NVMe
SSD
Dual Intel®
1G Ethernet
Various Backplane
and Chasis
Specifications
Performance
Connectivity
Quad-Core Intel® Celeron® Processor J6412
Ideal for embedded applications, IEI's PICOe-EHL provides exceptional performance and energy efficiency. It has a 75% performance gain over the previous generation, up to a 1.7x improvement in single-thread performance and up to a 1.5x improvement in multi-thread performance. Its quad-core Intel® Celeron® J6412 SoC ensures swift processing at frequencies up to 2.6GHz, while the 1.5M cache enhances overall responsiveness. With a remarkable TDP of only 10W, this device offers unparalleled power efficiency.
8GB LPDDR4x On-Board Memory
The PICOe-EHL is equipped with robust 8GB LPDDR4x on-board memory, widely utilized for applications in high-vibration and shock-prone environments. With onboard memory, it offers flexible space utilization, enhanced reliability, and mitigates issues related to memory poor contact, making it particularly well-suited for industrial applications.
Dual Independent Displays with up to 4K Resolution
Featuring Intel® UHD Graphics with a maximum of 16 execution units (EUs), this half-size PCIe CPU card offers superior graphics capabilities, enabling smooth and immersive visual experiences. Whether you are running graphics-intensive applications or demanding multimedia content, it delivers outstanding performance. Furthermore, the PICOe-EHL is capable of supporting a maximum resolution of 4kp60 across two simultaneous displays through HDMI 1.4 (up to 4096 x 2160@30Hz), and the optional iDPM module.
Storage and Networking
M.2 PCIe NVMe SSD
Dual Intel® Ethernet
One PCIe Gen3 M.2 slot provides support for NVMe SSD, giving a significant performance boost. It allows for faster data transfer rates, reducing loading times and improving overall system responsiveness. Upgrade your system today and witness the extraordinary performance gains it brings.
The PICOe-EHL is equipped with two Intel 1GbE controllers, which are ready for the latest-performance router. With two 1GbE ports owning the benefits of low-latency, high-throughput and cost-effective, the PICOe-EHL can meet the bandwidth-intensive requirements such as large file transfers and high resolution video streaming, which is ideal for machine vision and AI edge computing applications.
Various Backplane and Chasis
Optional Accessories
Converter Board
Cables and Connectors
Backplanes
32205-000702-200-RS
• Serial port cable
• Dimension: (L) 230mm
• 10-pin (2x5) connector
People Also Viewed
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Half Size SBC |
| System | |
| CPU |
Intel® Elkhart Lake Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W) |
| Memory | LPDDR4x-3200Gbps 8GB, up to 16GB |
| Memory Max. | 16GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 185 mm x 126 mm |
| Net Weight | 420g |
| Storage | |
| Storage | 2 x SATA 6Gb/s |
| I/O Interface | |
| Display Output | 1 x HDMI™ : up to 4096 x 2160 @30Hz |
| 1 x iDPM : support iEi eDP/ LVDS/ VGA module | |
| Ethernet |
2 x LAN - LAN1: Intel® I210 controller LAN2: Intel® I210 controller |
| Audio | 1 x HD Audio : iAUDIO (2 x 5 pin, support IEI AC-KIT-888HD Module) |
| I/O Interface | 2 x External USB 3.2 Gen2x1 : 10Gb/s(Type A) |
| 2 x Internal RS-232 : 2x5 pin, P=2.0 | |
| 2 x Internal RS-232/422/485 : 2x5 pin, P=2.0 | |
| 4 x Internal USB 2.0 : 2x4 pin, P=2.0 | |
| Expansion | 1 x M.2(NGFF) : M Key (2242/2280) PCIe Gen3 x2 |
| 4 x PCI Slot : to the backplane | |
| 1 x PCIe x4 : to the backplane (1 x PCIe x4 or 4 x PCIe x1) | |
| Power | |
| Power Consumption |
5V@6.39A, 5VSB@0.22A, 12V@0.96A (Intel® Celeron® J6412 CPU with 8 GB 3200 MHz LPDDR4x memory, max. loading, EuP mode enabled) |
| Power Supply |
1 x Internal 12V power connector (2x2 pin) Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | 0°C~60°C |
| Storage Temperature | -20°C~70°C |
| Humidity | 5% ~95%, non-condensing |
Ordering Information
| PICOe-EHL-J6412C-R10 | Half-size PCIe CPU Card supports Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC, with 8GB LPDDR4x memory on board default, DDR4, HDMI™,iDPM display module,Dual Lan, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
